Description
Built for harsh marine conditions, the HyDrive Commander Series COMKIT1PRO-FL delivers mid-range, high-performance hydraulic steering for catamaran vessels without requiring a solid tie bar. Engineered in Australia for extreme reliability, this system hydraulically synchronizes twin outboards using dual cylinders connected via hoses.
Key Features & Benefits
-
Engine Compatibility: Rated for twin outboard catamaran installations up to 600HP combined.
-

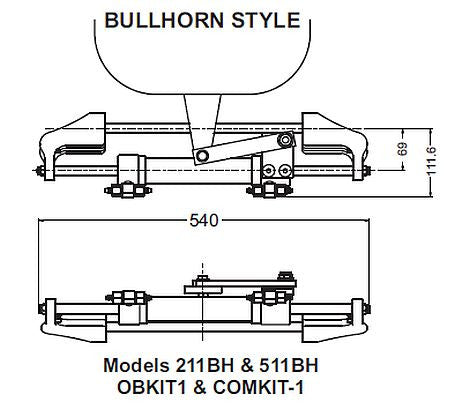

Advanced Electrolysis Protection: Features dual 511BH aluminum cylinders with unique composite bull horns and isolated link arm seals, eliminating pitting shafts, fragile earthing wires, and galvanic corrosion.
-

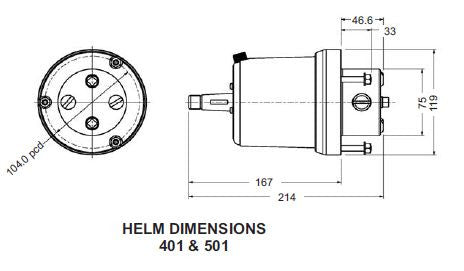

Heavy-Duty Construction: Includes the robust 401 Helm built with a stainless steel shaft, long-life internal components, and an integrated 28cc/rev lock valve.
-
Complete All-in-One Kit: Fully equipped with fluid, tubing, valves, fittings, and a bleeder kit for a straightforward installation.
| Specification | Details |
| Model | COMKIT1PRO-FL (Catamaran System) |
| Max Horsepower | Up to 600HP Combined (Twin Outboard) |
| Tie-Bar Type | Hydraulic Connection via Hoses (No Solid Tie Bar) |
| Helm Capacity | 401 Helm (28cc/rev) with Stainless Steel Shaft |
| Warranty | 2-Year Pleasure / 1-Year Commercial Use |
Kit Includes
-
1x 401 Helm
-
2x 511BH Aluminium Cylinders
-
1x N8 CAT Valve
-
2x 15m N8 Nylon Tubing
-
3L ULTRA-15 Fluid
-
Complete Bleeding Kit & All Necessary Fittings
-
Installation Manual
Ordering Requirements & Delivery Notice:
Specify Engine Details: Please confirm your outboard motor model and year when placing your order to ensure the correct link arms are supplied.
Dispatch Time: Some HyDrive stock is held in a remote warehouse and may require additional delivery days. If your order is urgent, please contact us on 01980 624512 prior to purchasing.
