Outboard Transom Bracket Mount Commander Series Steering Kit (COMKIT5)

Description

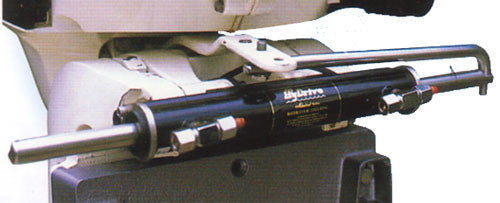

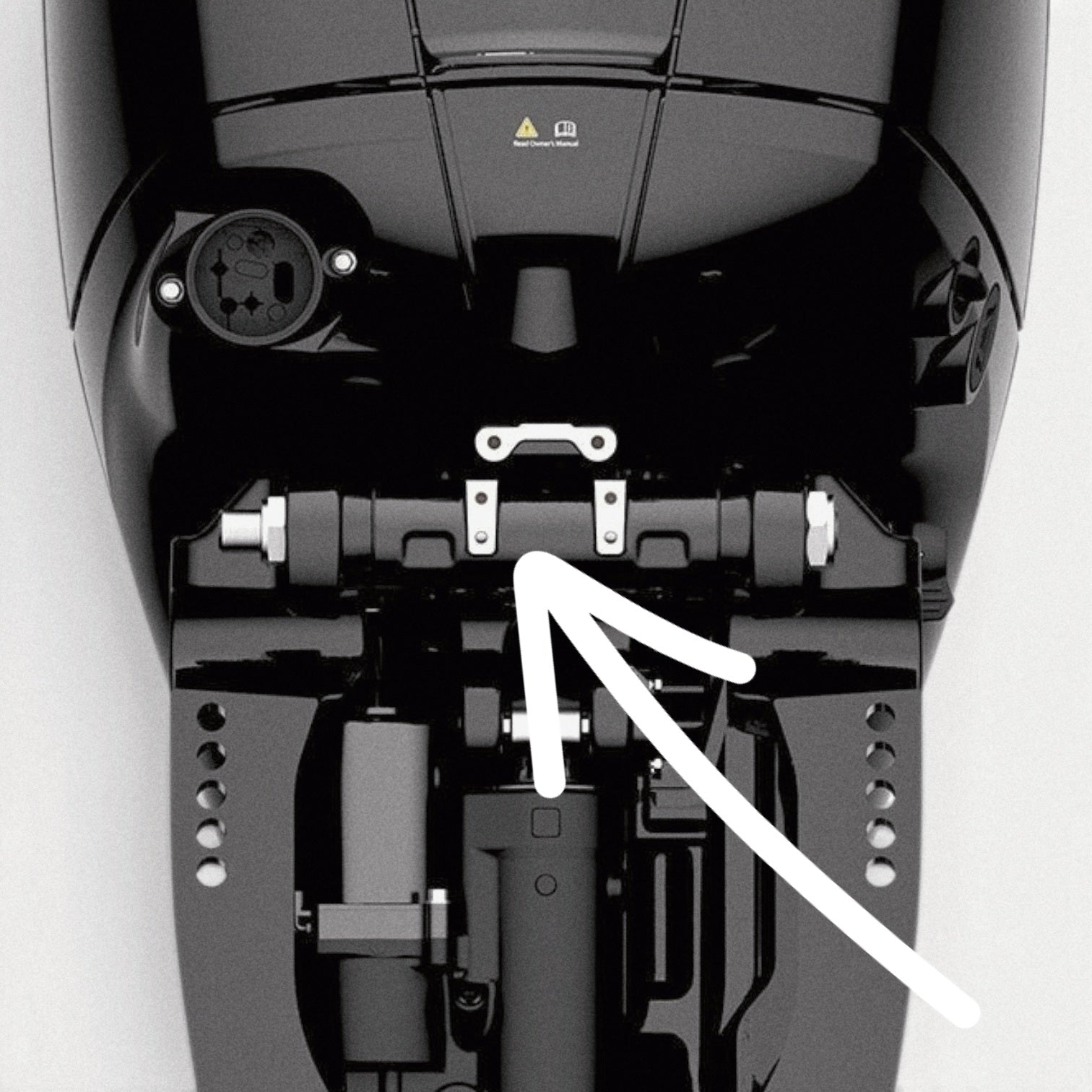

The unique feature of the COMKIT5 is the bracket mount cylinder, which fixes directly to the 4 threaded holes often found on the centre section of Outboard Motor transom brackets. This keeps it very close to the front of the outboard, so ideal for tight installations where fouling may occur with other configurations. It’s rated up to 235hp with right hand rotation propeller outboards, or 470hp with a counter-rotating pair.

HyDrive cylinders integrate unique internal insulation between mismatched metals. This design eliminates the primary cause of galvanic corrosion found in other brand systems. HyDrive piston rods aren’t chrome plated like other brands, so the issue of peeling chrome acting like razor blades on the seals doesn’t exist. The HyDrive Commander Series offers specially anodized aluminium cylinders,  stainless steel piston rods and link arm, plus a stainless shaft helm – offering great value combined with the quality customers expect from HyDrive.

Kit Includes:

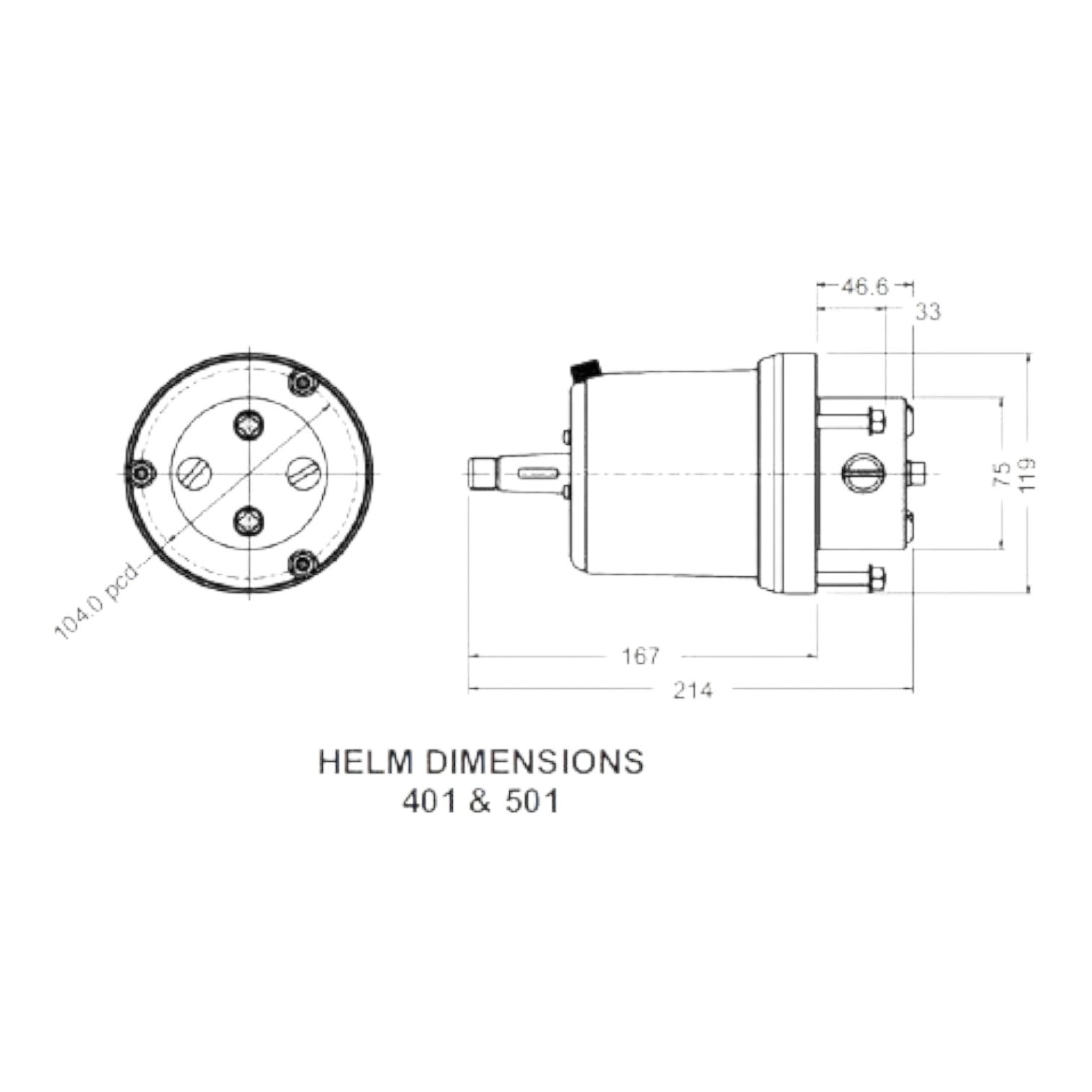

• 401Helm:  28cc/rev In-built Lock valve
• Model 516FM cylinder: Capacity:- 154cc Stroke:- 203mm
• 2 litres ULTRA-15 fluid
• 15 mtrs 3/8” OD Nylon tubing
• Bleeding Kit
• All fittings

WHEEL TURNS lock to lock with the standard 401 helm = 4.9. Alternatively, the 402 helm can be supplied = 3.9 Turns. Please specify before ordering.

Please note that some Hydrive products are held in a remote warehouse, so it may take a few more days for delivery. If your requirement is urgent, please call us before ordering on 01980-624512.

HyDrive’s home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability.  HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.
