Description
- Dimensions: 7.5″ x 7.75″ x 9.625″ (19 x 19.7 x 24.4 cm)
- Weight: 16.5 lbs (7.5 kg)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Material: Electronics Control Unit (ECU) – fully gasketed aluminium alloy; bracket – carbon steel; manifold – aluminium alloy; motor – aluminium alloy
- Power cable length: 9 ft (2.7 m)
- Power input: 11.5-30 Vdc
- Fuse: 40 A blade-type
- Main power usage: standby – less than 1 A; engaged – 5-10 A; peak – 34 A
- Flow rate: Configurable from 0 to 2.4 L per minute
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
CCU Specifications
- Dimensions: 3 19/32″ diameter (91.4 mm)
- Weight: 5.6 oz (159 g)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Case material: Fully gasketed high-impact plastic waterproof to IEC 529 IPX7 standards
- CCU cable length: 9.5 ft (3 m)
- NMEA 2000 power input: 9-16 V
- NMEA 2000 LEN: 3 (150 mA)
Every Captain Needs A Co-Pilot
Designed for powerboats this Reactor 40 hydraulic corepack with SmartPump gives an extra hand explore paradise worry-free.
- This Reactor 40 corepack is the perfect companion for a hydraulically steered system.
- Yes it features a solid-state 9-axis AHRS. And yes that means it can be mounted nearly anywhere.
- Even when pitching or rolling this autopilot reacts to sea conditions to keep the boat on course.
- Just want to get on the water We made calibration fast and easy. That’s the power of simple.
- Combine with a compatible Garmin chartplotter and control the autopilot from anywhere on the boat.
- The GHC 50 autopilot instrument enhances the autopilot experience.
Plot Course to Paradise
Corepack Compatibility: This corepack’s compact brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.
Smartpump V2: The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus gain better thermal performance higher reliability and lower power consumption.
Solid-State 9-Axis AHRS: With its advanced solid-state 9-axis AHRS mount the Reactor 40 nearly anywhere in any orientation. It even reduces power consumption minimises heading error and more.
Reacts to Water Conditions: Hold course on the sea – this autopilot reacts to conditions remain confident even when the boat is pitching or rolling.
Simple Calibration: All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
Shadow Drive Technology: Gain more freedom when manoeuvring the boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when the wheel is turned.
Wireless Remote Capabilities: Control the autopilot from anywhere on the boat by using a compatible Garmin devices including the Reactor autopilot remote select quatix marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
Connect to Everything on the Boat
Includes GHC 50: Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to the helm. Plus GHC 50 shares data and settings with Garmin MFDs and other installed Garmin devices.
Powerboat and Sailing Features: When connected to a compatible Garmin chartplotter all Reactor 40 corepacks offer powerboat and sailing features including heading hold and step turns – plus wind hold and tack/jibe when paired with a wind sensor (sold separately). It can even gain additional benefits such as the follow route and Auto Guidance+ features.

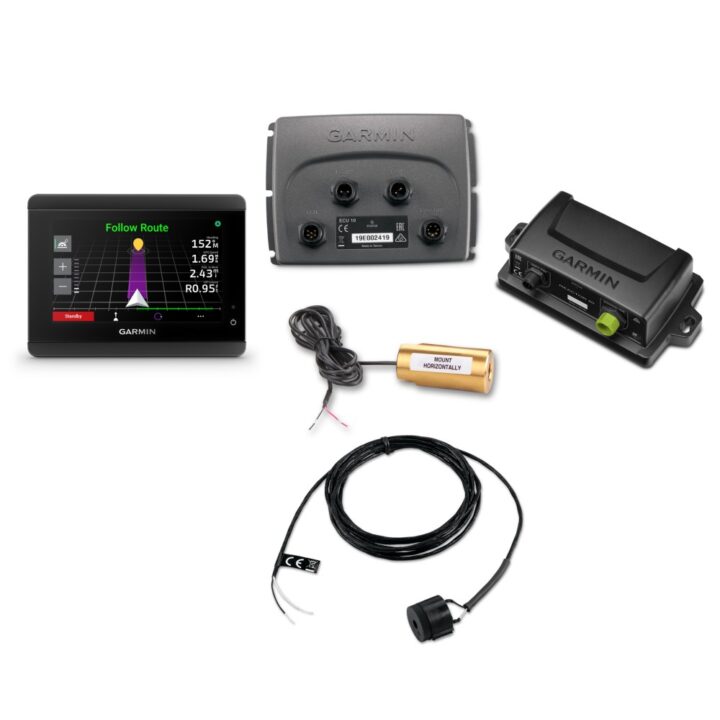

In the Box
- Reactor 40 CCU (Course Computer Unit)
- GHC 50 helm control display
- NMEA 2000 drop cables (2 metres)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Buzzer
- Male and female terminators
- Interconnect cable
- ECU (Electronic Control Unit) power cable
- Shadow Drive
- SmartPump v2
- Documentation
